Ammunition Test Device Series 1055

Description

The devices of the Series 1055 are used for testing ammunition. The barrel-change system allows for fast switching of barrels for different calibers. All test barrels are available as velocity measuring barrels, gas pressure measuring barrels and precision measuring barrels.

The bores for the gas pressure sensors are easily accessible from three sides. The safe breech system prevents unintended firing. Matching shooting tables of the FR 1060 series are available for all models.

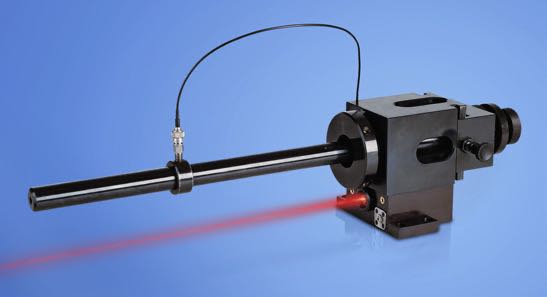

Breech & firing pin

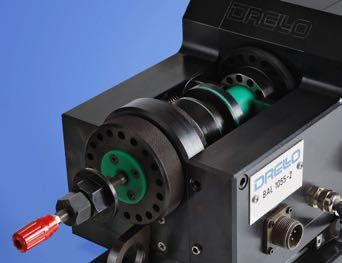

An optionally available insulated firing pin enables the defined start of a measurement (t0 pulse). The replaceable breech head allows easy use of different firing pin shapes. The individually adjustable parameters of breech distance and firing pin protrusion, combined with the corresponding test barrels, enable the testing of any ammunition under various aspects.

From model ATD 1055-2 onwards, devices come standard with an electromagnetic trigger. The optionally available firing device FU 1069 allows triggering from a safe position.

Velocity measurement

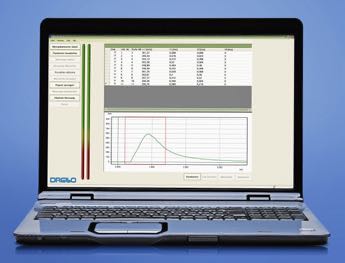

The ATD 1055 can be connected to the IMS 8510 Measurement System for velocity measurements. The system captures and evaluates the measurement signals and documents the results.

Gas pressure measurement

Depending on the test task, gas pressure can be measured with quartz pressure transducers or copper crusher elements.

Model comparison

Calibers

	ATD 1055-1	ATD 1055-2	ATD 1055-3
Handguns	all	all	all
Long arms	≤ 7.62×63 (.30-06)	≤ 12.7×99 (.50 BMG)	≤ 20×139 *

Ammunition type

	ATD 1055-1	ATD 1055-2	ATD 1055-3
Centerfire	●	●	●
Rimfire	●	●	●
Shot	option	●	●
Electrical	–	option	option

Dimensions, overall

	ATD 1055-1	ATD 1055-2	ATD 1055-3
Length	258 mm	550 mm	630 mm
Width	180 mm	250 mm	274 mm
Height	100 mm	290 mm	350 mm
Weight	15 kg	85 kg	150 kg

Other

	ATD 1055-1	ATD 1055-2	ATD 1055-3
Electromagnetic firing	option	●	●
Breech distance adjustable	●	●	●
Firing pin	available in different designs	available in different designs	available in different designs
Insulated firing pin	–	option	option
Firing pin protrusion adjustable	–	●	●
Splinter simulation	●	●	●
Gas pressure measurement	●	●	●

Accessories

	ATD 1055-1	ATD 1055-2	ATD 1055-3
Shooting table	FR 1060-1	FR 1060-2	FR 1060-3
Laser targeting device	LAD 1055-1	LAD 1055-2	LAD 1055-3
Electromagnetic firing device	FU 1069	FU 1069	FU 1069
Test barrels	≤ 7.62×63 (.30-06)	≤ 12.7×99 (.50 BMG)	≤ 20×139 *
Measurement system for velocity measurement	IMS 8510	IMS 8510	IMS 8510
Quartz pressure transducer / copper crusher element	available in different designs	available in different designs	available in different designs

* Variants for larger calibers are available as special models.

Applications

• Ammunition testing per NATO (EPVAT), CIP, SAAMI and additional standards
• Material quality testing and splinter simulation
• Velocity measurement with the IMS 8510 Measurement System
• Gas pressure measurement with quartz pressure transducers or copper crusher elements
• Firing pin and breech parameter studies for different ammunition types
