Abel
Testing the thermal stability of nitro cellulose and other nitro compounds.

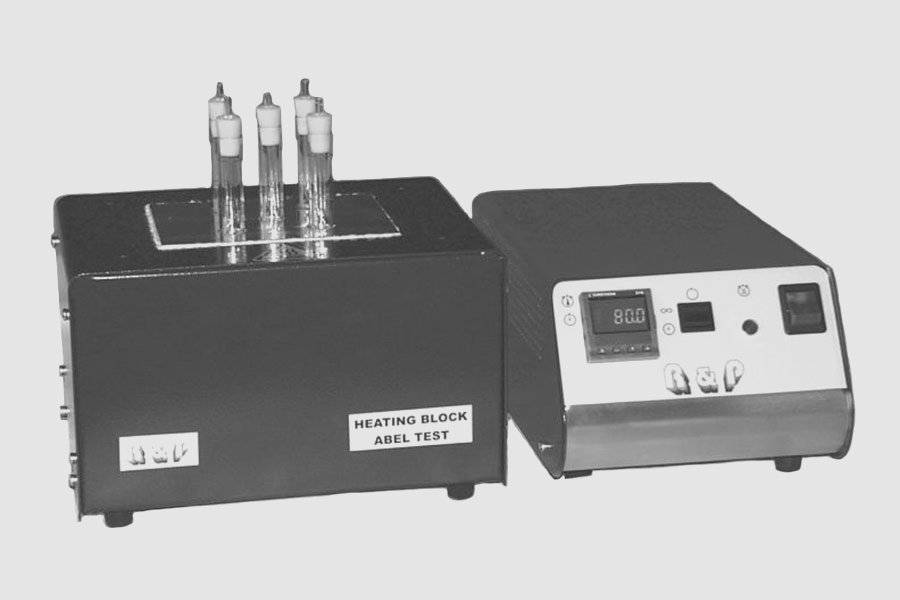

Apparatus for determining the thermal stability of nitrocellulose powders and other nitro containing explosives, according to the Abel-Test at 80°C.
FEATURES
- Aluminium heating block, electrical heated; 5 holes 17.5 ± 0.1 mm Ø, depth 70 mm; temperature sensor: PT100 probe; excess temperature safety device, fixed at 100°C
- Programmable heating controller (PID) in a separate control box, length of the power cable: app. 2 m; digital display for actual or set temperature; control accuracy: ±0.1°C; adjustable max temperature: 85°C
- Set of 5 test tubes consisting of the cylindrical test tube with 3 ring marks; rubber stopper with hole; glass rod with molten-in platinum hook; dimensions of test tube: Ø 17,5 ± 0.2 mm x 135 ± 2 mm
Technical Specification
Mains:230 V / 50 Hz
Power:300 VA
