German-Method
Test of the thermal stability of nitro cellulose and other nitro compounds.

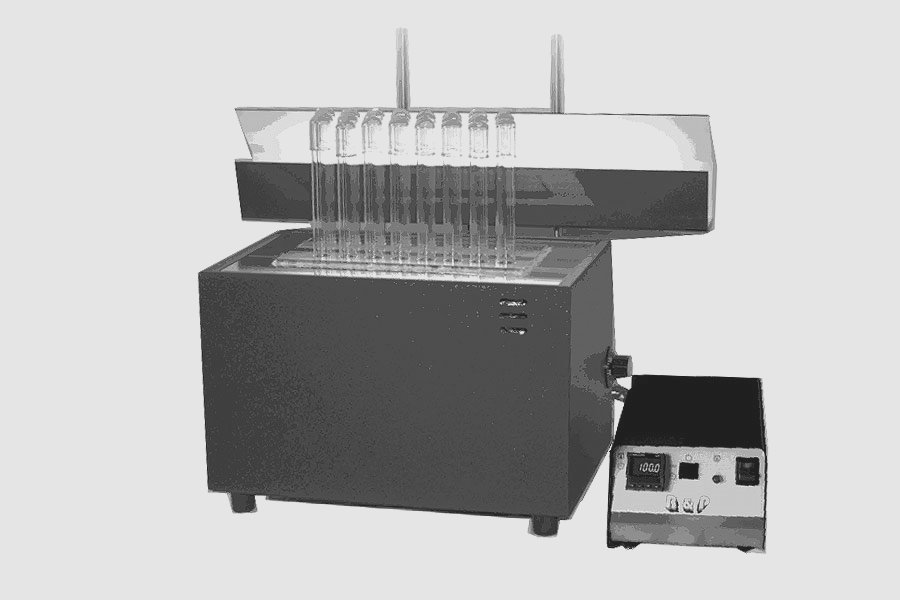

Apparatus for determining the thermal stability of nitrocellulose and other nitrocompounds,according to the German Method Test at 135° Celsius.
FEATURES
- Heavy aluminium heating block, electrical heated; 24 holes 20.5 ± 0.1 mm Ø, depth 200 mm; temperature sensor: PT100 probe; excess temperature safety device; surface insulating plate;
- Programmable heating controller (PID) in a separate temperature control box, length of the power cable: appr. 2 m; digital display for actual and set temperature; control accuracy: ±0.1°C; adjustable max temperature: 140°C
- Set of 24 test tubes consisting of the cylindrical test tube with glass cap; dimensions of test tube: Ø 20 ± 0.2 mm x 350 ± 2 mm
- Special daylight lamp for better detection of nitrous vapours with special fluorescent lamp providing non-dazzling illumination; solid support stand for exact positioning of the lamp
Technical Specification
Mains:230 V / 50 Hz
Power:1500 VA
