Firing Device Series 1069

Description

The firing device FU 1069 is used to safely trigger ammunition test devices and the magnetic firing units for original firearms. Operation takes place from a safe position while the weapon or test device is in the firing range.

All devices have two separate safety circuits: a key switch that is open in the idle state, and a passive electrical safety circuit. For example, access doors with door contacts can be secured via the passive safety circuit. Both safety circuits must be closed in order to trigger the shot.

Operation & connection

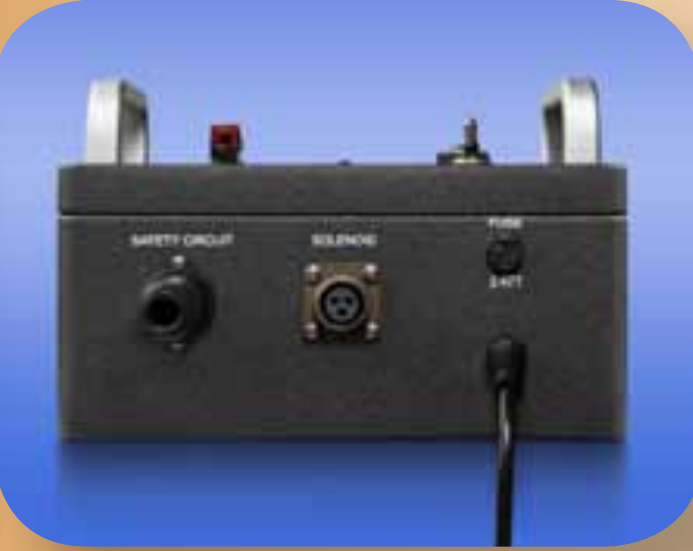

Two indicator lights show the current state of the system. The passive safety circuit and the electromagnetic firing line are connected to the device via banana plugs. The shot is triggered by turning the key switch and simultaneously pressing the fire button.

Mounting brackets fitted on the underside allow permanent installation. The brackets can be exchanged for rubber feet for table-top operation.

Safety circuits

All devices in the 1069 series feature two separate safety circuits, both of which must be closed before a shot can be triggered:

• Key switch — open in the idle state and intended to enable the fire button.
• Passive electrical safety circuit — freely assignable for system-side safeguards. Typical use: integration of door contacts so that no shot can be triggered as long as access doors to the firing range are open.

Only when the key switch and the passive safety circuit are closed and the fire button is pressed does ignition take place. The indicator lights signal the current system state at any time.

Technical data

Electrical

	FU 1069
Power supply	115/230 V AC, 50–60 Hz
Power, idle	5.2 W
Power, maximum	122 W
Passive safety circuit	standard

Firing, magnetic

	FU 1069
Hold voltage	40 V DC
Pulse voltage	200 V DC

Dimensions

	FU 1069
Length	260 mm
Width	160 mm
Height	90 mm
Weight	approx. 5 kg

For use with

	FU 1069
Ammunition test device Series 1055	●
Weapon mount Series WF	●

Applications

• Remote triggering of ammunition test devices in the 1055 series
• Actuation of the electromagnetic firing line on original firearms in WF series weapon mounts
• Integration into firing range installations with door interlock and access monitoring
• Tests in combination with ammunition test devices and shooting tables
