Ballistics
Ballistic high-pressure measurement and precise real-time analysis of weapons and ammunition — safety in precision.
Ammunition Test Device Series 1055
Universal ammunition test device for testing per NATO (EPVAT), CIP, SAAMI and additional standards — modular barrel-change system for all calibers, three model sizes up to 20×139.
Shooting Table Series 1060
Robust shooting tables with damped recoil mechanism — for original small arms and ammunition test devices up to caliber 20×139.
Projectile Recovery System PRS 1090
Modular projectile recovery system designed to retrieve projectiles with minimal deformation for forensic examination.

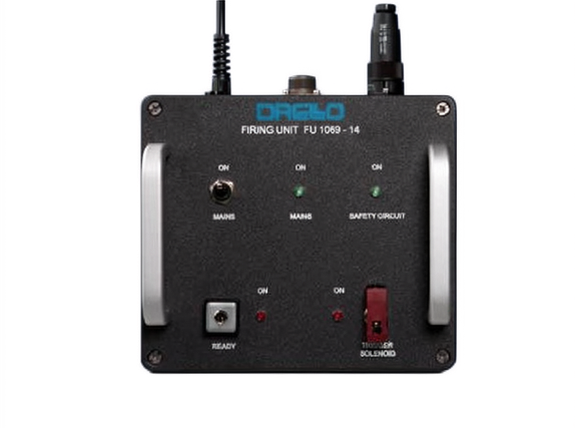

Firing Device Series 1069
Safe electrical remote triggering for ammunition test devices and magnetic firing units — two separate safety circuits, key switch and colored indicator lights.
Optical Sensors Series 610
Optical sensors for testing ballistic events — OS 615 detects fuze running times of explosive projectiles up to 5 km, OS 616 measures the delay of tandem ammunition against reactive armor.

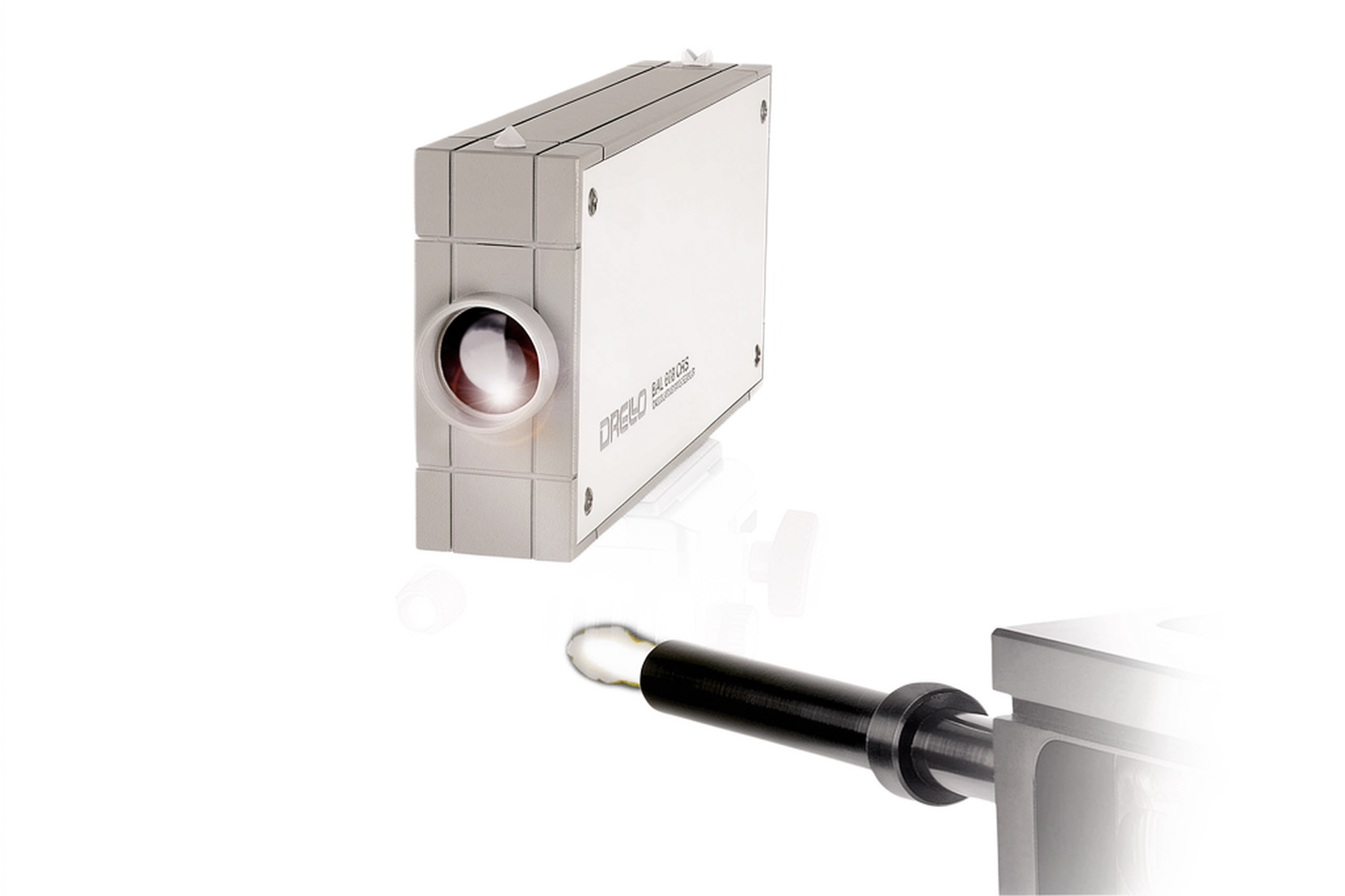

Muzzle Flash Sensor Series 600
Optical muzzle flash sensor for rate-of-fire capture on fully automatic weapons as well as start/stop pulse generator for measurement chains — MFS 607 (available), MFS 608 (no longer available).
MBS 403 Muzzle Blast Sensor
Acoustic sensor for detecting projectile exit and generating precise start and stop signals for ballistic measurement chains.

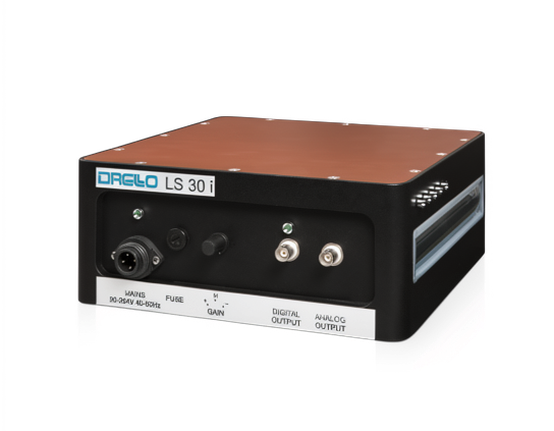

IR Präzisionslichtschranke LS 30i (IR Precision Light Barrier LS 30i)
High-precision IR light barrier for measuring projectile velocity and rate of fire — wide beam angle, calibers 4–155 mm, IP 64.
Lichtschranke LS 66 (Light Barrier LS 66)
Infrared light barrier with two measuring planes for velocity measurement on drop test rigs — developed for testing stab-resistant materials.
Highspeed-Kamerasysteme (High-Speed Camera Systems)
High-speed imaging for ballistic testing — impact, penetration and projectile behaviour made visible. Application-specific configuration on request.
Target Pattern Plate TS 721
Acoustic target pattern plate for the automatic capture of supersonic projectiles — active area 1.5 × 1.5 m, calibers 4.6–40 mm, use in firing range and field.
IMS 8500 Intelligent Measurement System
Modular measurement system for acquiring and evaluating ballistic timing data — projectile velocity and rate of fire, plus gas-pressure curves in documented configurations.

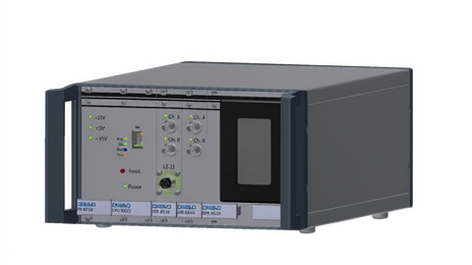

Measurement System IMS 8510
Central data acquisition and evaluation for velocity, time and rate of fire — used with the IR Precision Light Barrier LS 30i and optical sensors of the Series 610.
Projectile Yaw Angle System
Optical test system for capturing projectile orientation immediately before impact on protection materials.
Mud Tray
Custom stainless-steel tray for ballistic test setups, media contact and environmental special testing.
Shallow-Water Immersion Test Chamber
Custom immersion test chamber for ballistic shallow-water testing with standard information TOP 03-2-045A, 4.5.6 a and 4.5.6 b, internal dimensions 2000 × 500 × 1500 mm and temperature control from +5 °C to +40 °C.
Precision Ammunition Components
Fragment Simulator Projectiles (FSP), Right Circular Cylinders (RCC) and sabots per STANAG / AEP 2920 for ballistic protection testing.

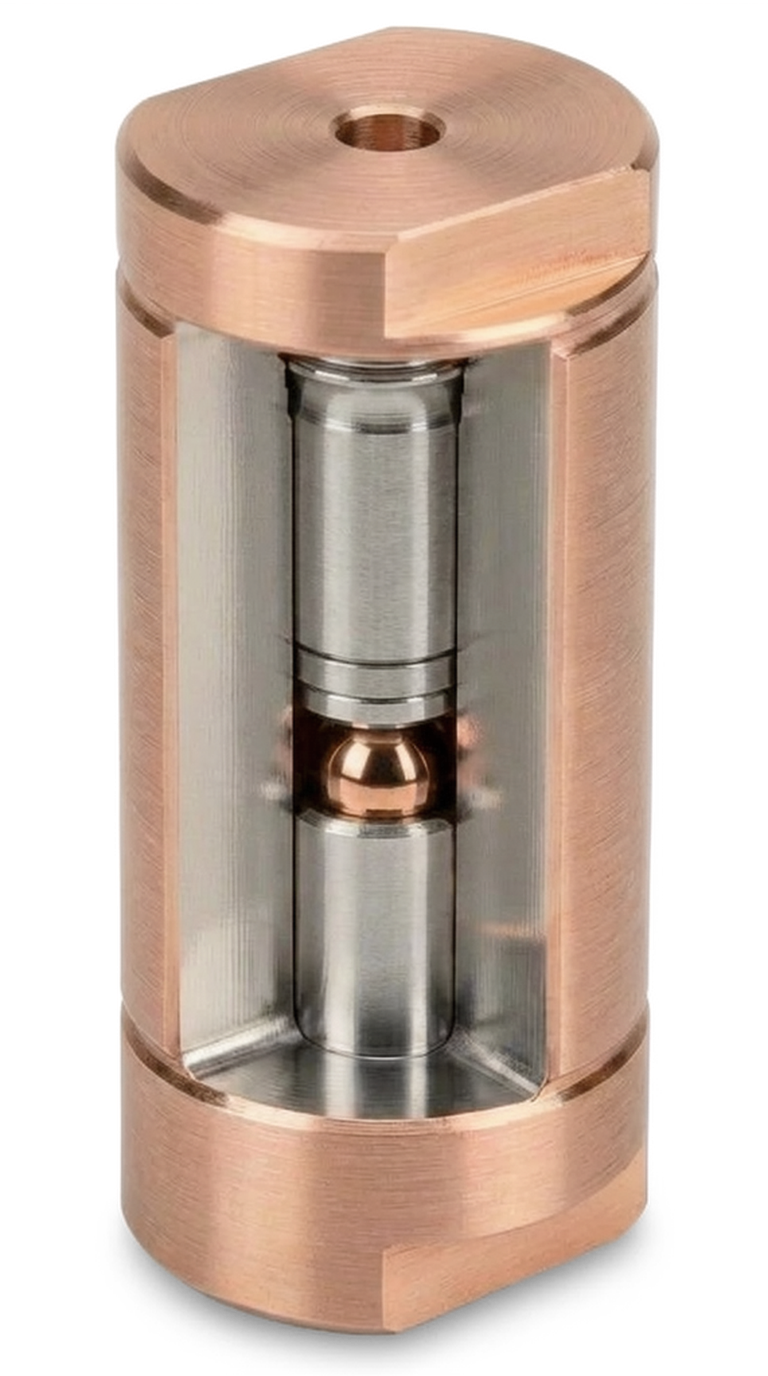

Stauchdruckmessgeräte und Kupferstauchkörper (Crusher Gauges and Copper Crusher Elements)
Copper crusher gauges and measuring elements for interior ballistic high-pressure measurement up to 8500 bar — manufactured from C10200 copper (≥ 99.9 %) with the highest precision in Germany.
Boresighting Telescope TLC 1015
Compact optical boresighting telescope for aligning and adjusting ammunition test devices and mounted original firearms.
WF Series Weapon Fixtures
Fixtures for long firearms, pistols and revolvers on FR 1060 series firing rests, with application-specific clamping and triggering options.

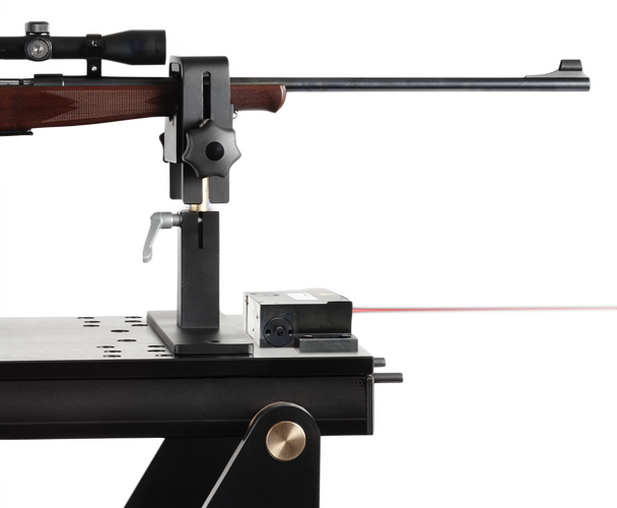

Zubehör Serie 1055 (Series 1055 Accessories)
Laser targeting device LAD 1055, test barrels, projectile angle-of-attack module AOA 1529 and Retarder 171 — the accessory program for the Series 1055 ammunition test devices and Series 1060 shooting tables.
Filtered by — explore more products?
No matches for
Try a different search term or browse through all products.
DRELLO Ballistics — ballistic measurement technology by R + P MESPRO
When ammunition is fired, extremely high pressures arise in the cartridge chamber and barrel — often several thousand bar within milliseconds. Especially in the civilian and government sector, compliance with recognized standards is essential to meet national and international market requirements. Under the DRELLO Ballistics brand, R + P MESPRO develops and manufactures the measurement systems that are the worldwide standard in firing laboratories, proof houses and industry — from sensors and evaluation units to software.
Why R + P MESPRO
- DRELLO heritage DRELLO Ballistics by R+P MESPRO
- Standards compliance CIP, SAAMI, NATO EPVAT, STANAG
- Made in Germany Engineering & manufacturing
- Full service Consultation, installation, training
Covered standards
Need advice for your firing lab?
Get a no-obligation consultation — we will find the right system for your ballistic requirements.
